DESCRIPTION
KORLOY Part Number: 1-06-053976

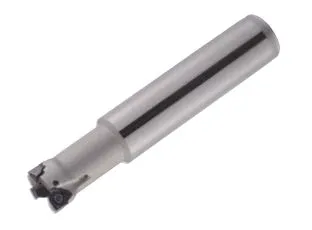

Korloy's Rich Mill RM6 is a multi-functional milling tool that offers improved stability with 3 clamping surfaces on the side and strong clamping screws. High quality results are achieved with excellent perpendicularity, outstanding surface finish and accurate tolerance. This RM6 mill is ideal for high speed and high feed machining. This version has a integrated shank.
- High rake cutting edges to reduce cutting resistance
- 3-level flank relief surface to enhance rigidity and enables stable clamping
- Streamlined holder design that improves chip evacuation in deep slotting
- Through Coolant for direct cooling
***Product image may be different than actual product.
SPECIFICATIONS
| Brand: | KORLOY |
| Korloy Cutter Series: | Rich Mill RM6 |
| Type: | 90 Deg. Multi-Application Indexable Mills |
| Designation: | RM6PSA125R-2W125-500-WN08 |
| Approach Angle: | 0 |
| Diameter: | 1.25 |
| Overall Height: | 1.575 |
| Arbor Hole Diameter: | 1.25 |
| Number Of Inserts: | 2 |
| Insert Mounting Style: | Screw-On |
| Inscribed Circle Of Insert: | |
| Thru Coolant: | Yes |
| Cutting Hand: | RH |
| Pitch Type: | |
| AR: | -6 |
| RR: | -20 |
| Accepts Insert: | WNGX |
| Tool Type: | Integrated Shank |
| Screw #: | FTNA0512 |
| Replacement Wrench: | TW20-100 |
| Used For:: | Facing|Side Milling|Slotting|Ramping|Helical Cutting |
| Prop 65: | Yes |
| Country Of Origin: | IMPORT |
| Weight: | 1.46 lbs. |
